Electrical Grounding Solutions

Corrosion Proof Ground Plate with Improved Safety Performance

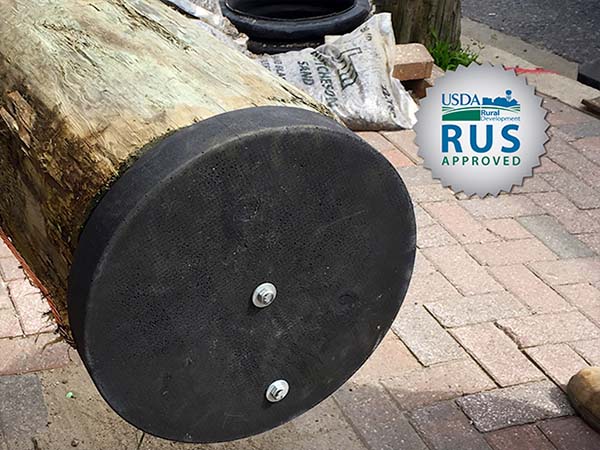

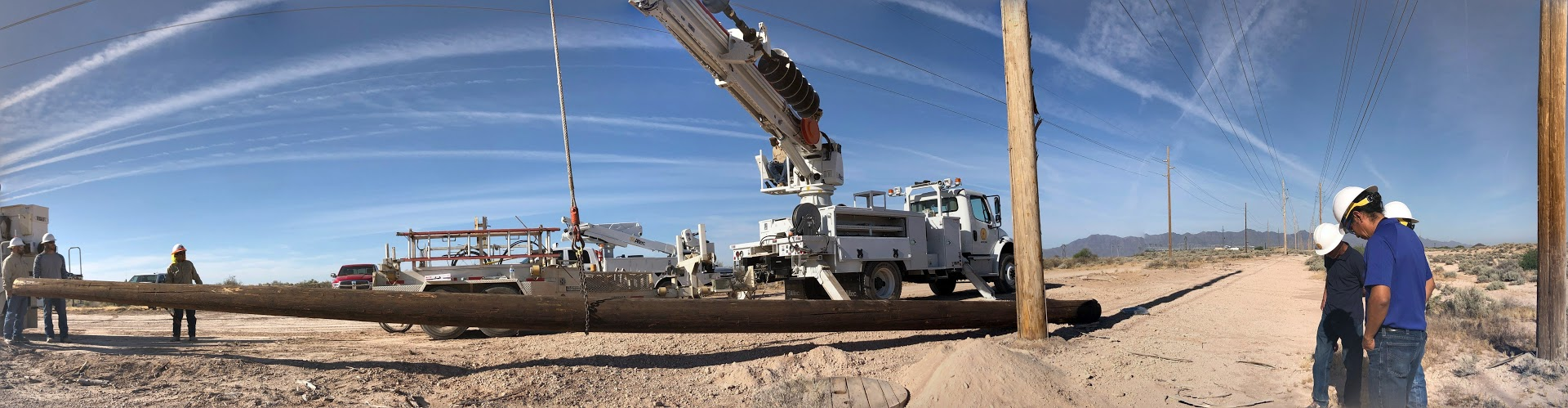

ConduDisc is a fully NEC compliant conductive grounding plate that dramatically enhances the performance and longevity of utility grounding systems while virtually eliminating electrode corrosion.

ConduDisc  |  The RELIABLE Solution

By using the corrosion proof ConduDisc grounding electrode instead of a traditional ground rod, you will benefit from:

  • Improved safety during installation and network maintenance and fault performance
  • Better asset protection and reliability by ensuring protection devices function as designed and reduction in resistance to ground
  • Reduced installation time and costs from a 90% time reduction
  • Lowest lifecycle cost due to elimination of typical maintenance and replacement needs

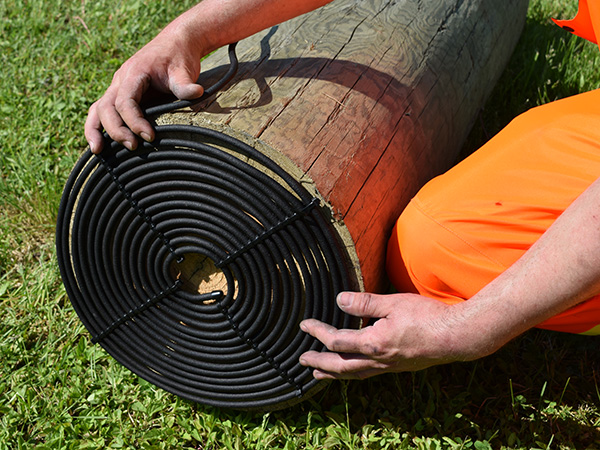

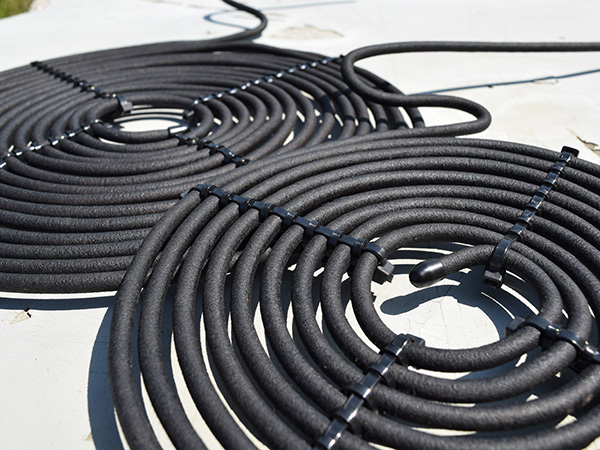

The ConduDisc is a conductively encased galvanized metal plate that improves grounding performance and network reliability over existing traditional methods.

COMPLIANCE AND APPROVALS

  • RUS Approved!
  • Meets the ESA Technical Guideline for Section 6 “Approval of Electrical Equipment” with regards to Ontario Regulation 22/04.
  • Compliance with CSA Standard C22.2 No. 41-13 and No. 65-13.
  • National Electrical Safety Code (NESC) compliant
SAE-USDA-Approved-Badge

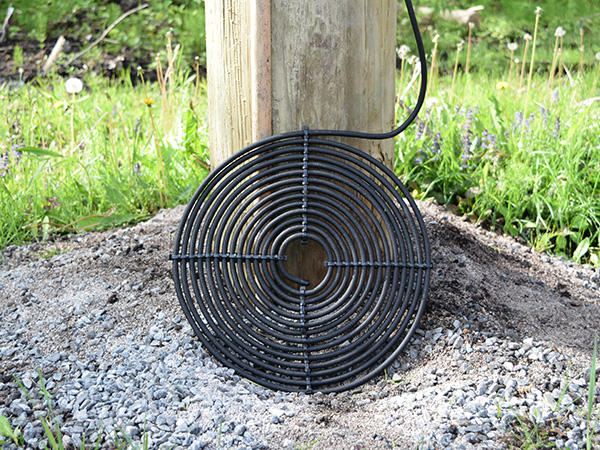

The ConduDisc Elite is the ultimate in grounding protection. A corrosion proof ground plate PLUS a conductive jacketed wire that will together extend the life of any grounding system.

CONDUDISC Flex

The ConduDisc Flex is ideally suited for use in situations where the utility requires flexibility in terms of conductor and connector sizes.

Conductive Backfill that Significantly Reduces Electrode Corrosion

ConduCrete bag calculator ConduCrete Brochure ConduCrete Performance Benefits Brochure ConduCrete Pro Technical Info ConduCrete CP Technical Info ConduCrete Pro Permeability Testing Info ConduCrete CP Permeability Testing Info ConduCrete SDS Info

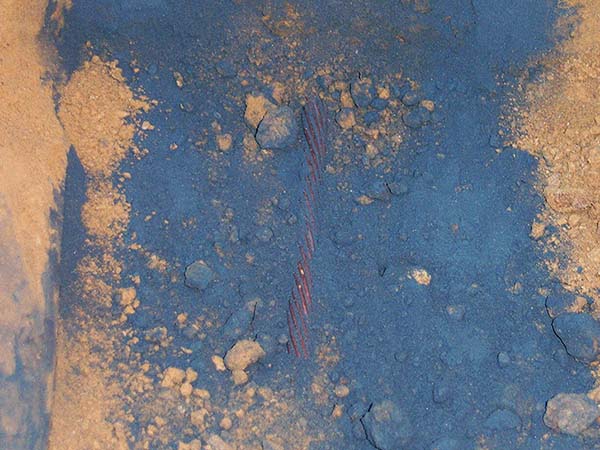

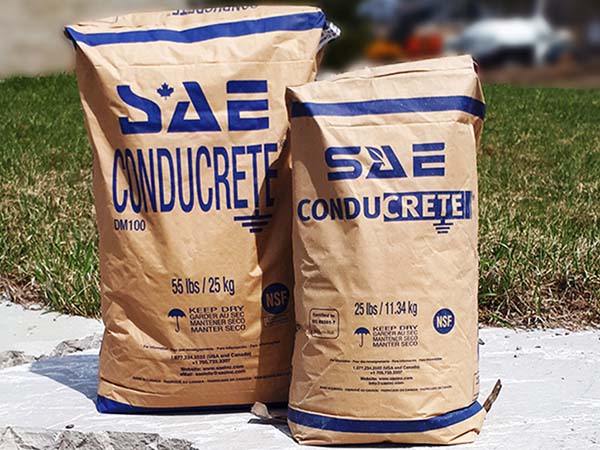

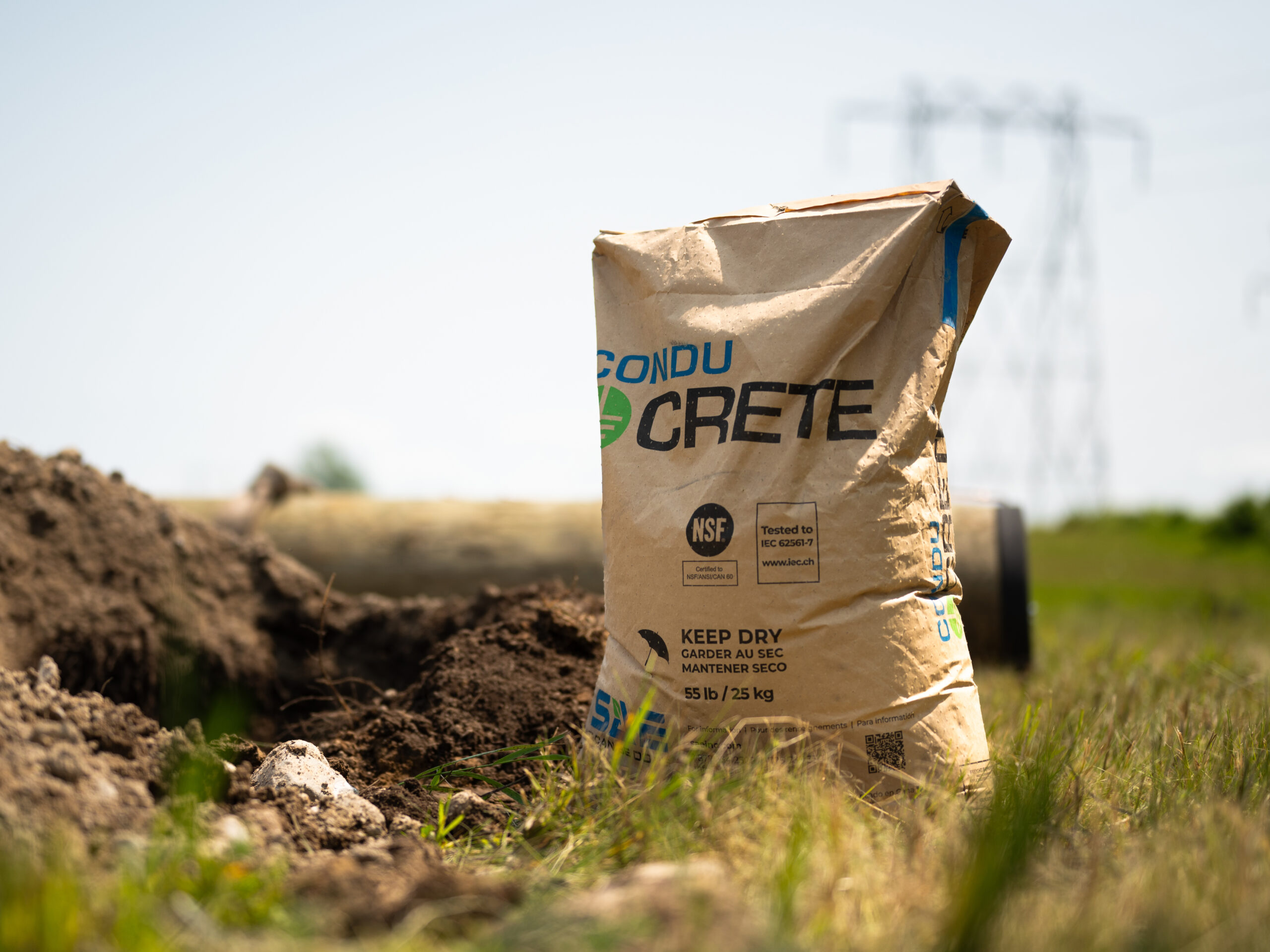

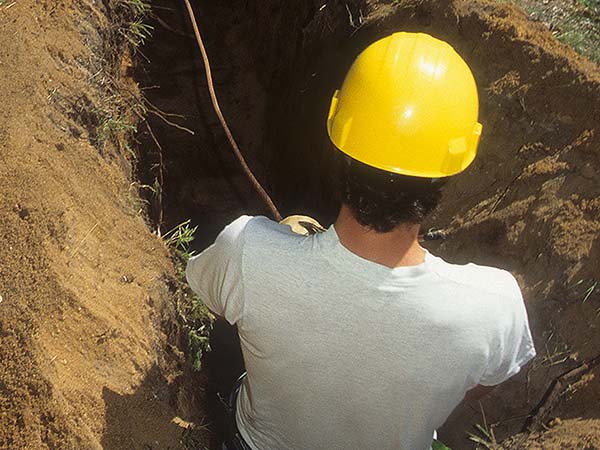

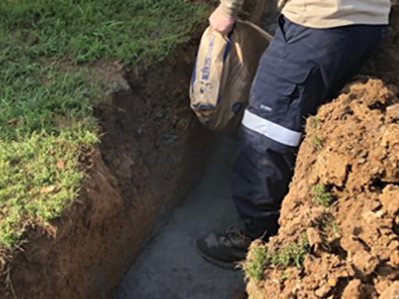

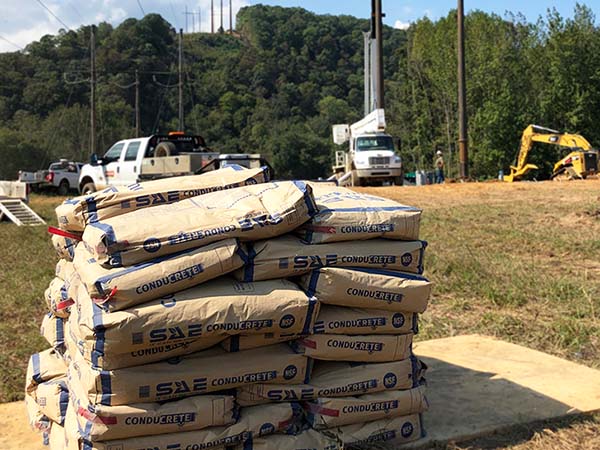

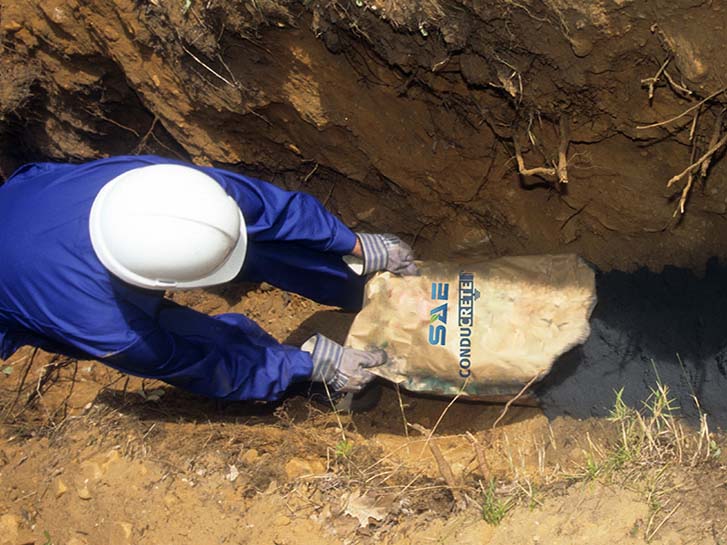

ConduCrete is a conductive cementitious and carbonaceous material that dramatically enhances the performance, reliability and safety of grounding and cathodic protection systems.

ConduCrete  |  The DEPENDABLE Solution

By using the ConduCrete grounding system compared to the non-conductive backfill system in traditional use today, you will benefit from:

  • Increased safety with lightning and fault current surge protection to help prevent outages
  • Better asset performance through reduced ground resistance
  • Save money by extending the life of the grounding system by up to 20x that of a traditional system
  • Lowest lifecycle cost due to lower labor costs with reduced installation time and no maintenance cost for the lifetime of the application

ConduCrete simultaneously absorbs and releases high rise time electrical surges into the ground.

COMPLIANCE AND APPROVALS

  • RUS Approved!
  • NSF 60 Certified!
  • National Electrical Safety Code (NESC) compliant
  • Meets the IEC 62561 Part 7 (Lightning Protection System Components – Part 7: Requirements for earthing enhancing compounds)
SAE-USDA-Approved-Badge

A Higher Performing, Corrosion Proof Ground Rod

ConduRod Brochure ConduRod Technical Info ConduRod Drawing Info ConduRod SDS Info

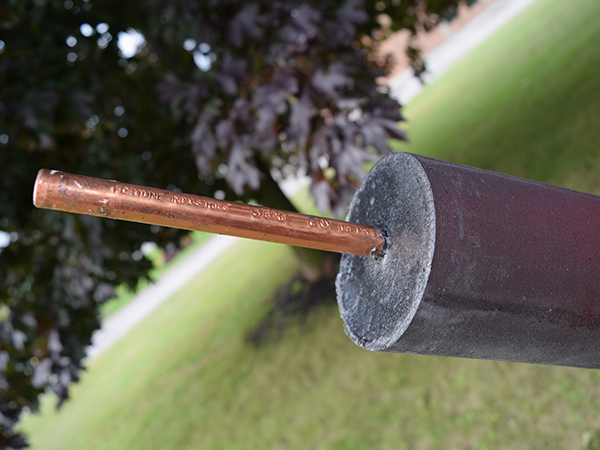

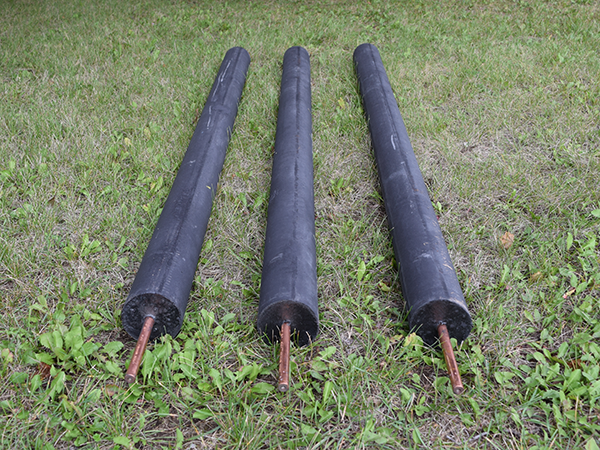

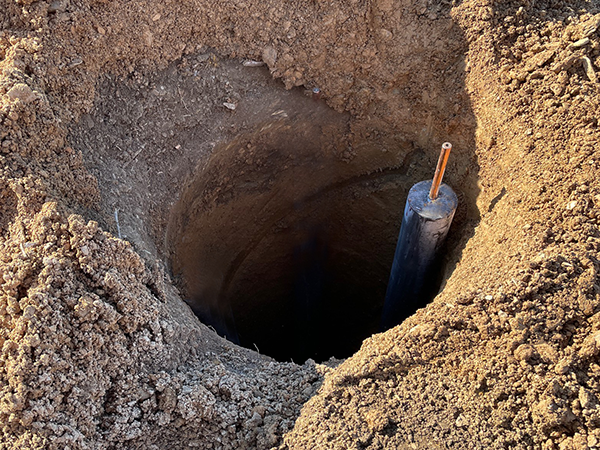

ConduRod is a conductively molded, increased surface area ground rod that dramatically enhances grounding performance while reducing installation costs and hazards associated with traditional methods.

ConduRod  |  The SUPERIOR Solution

By using the corrosion proof ConduRod grounding system compared to the traditional ground rod, you will benefit from:

  • Improved performance with 6x the surface area compared to a regular ground rod the same length
  • Better asset protection and reliability by ensuring protection devices function as designed and reduction in resistance to ground
  • Lowest lifecycle cost due to the use of same hole installation and the elimination of corrosion
  • Improved safety due to less hazards with driving in traditional ground rods

ConduCrete simultaneously absorbs and releases high rise time electrical surges into the ground.

COMPLIANCE AND APPROVALS

  • National Electrical Safety Code (NESC) compliant
  • Meets the IEC 62561 Part 7 (Lightning Protection System Components – Part 7: Requirements for earthing enhancing compounds)

Conductive Jacketed Wire that Dramatically Extends the Life of any Grounding System

ConduWire Brochure The Why Behind our ConduWire ConduWire Technical Info ConduWire Drawing ConduWire SDS Info

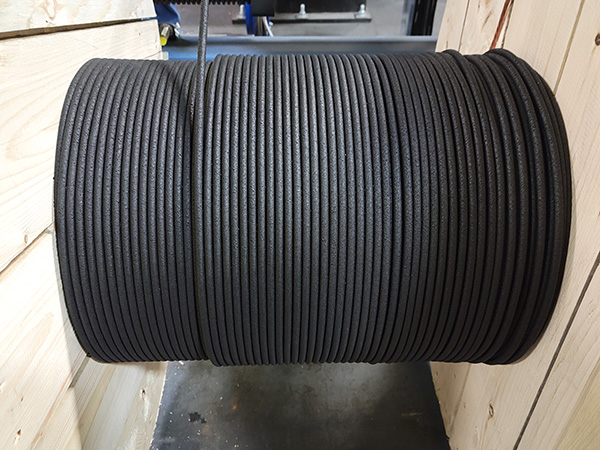

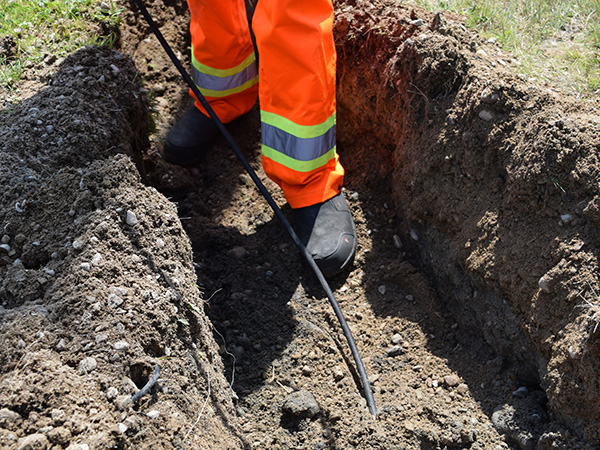

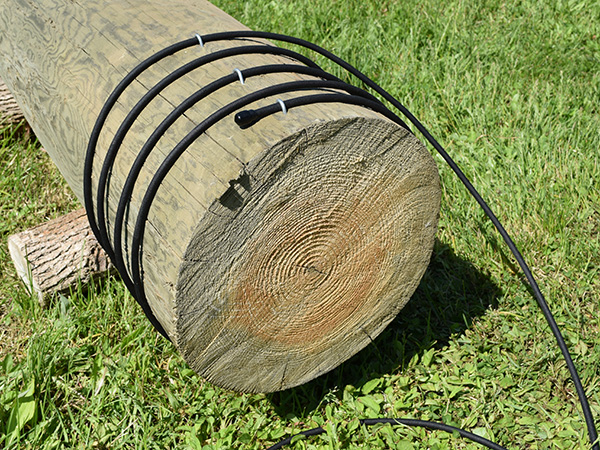

ConduWire is an extruded, conductively coated grounding wire that dramatically extends the life of any grounding system by virtually eliminating wire corrosion.

ConduWire  |  The DURABLE Solution

By using ConduWire as your grounding conductor compared to traditional materials used today, you will benefit from:

  • Increased life-cycle by significantly reducing electrode corrosion
  • Increased safety by ensuring grounding systems remain functioning for their design life
  • Lower overall cost by eliminating the need to replace grounding over time
  • No impact to installation by maintaining existing work methods

ConduWire ensures your grounding conductor will last in corrosive environments.

ConduWire is as flexible as bare wire while protecting from theft and corrosion.

Pourable Conductive Backfill for Grounding Protection of Networks and Assets

ConduFlow pail calculator ConduFlow Brochure ConduFlow Technical Info ConduFlow Kit Instructions ConduFlow SDS Info ConduFlow Volume Coverage Info

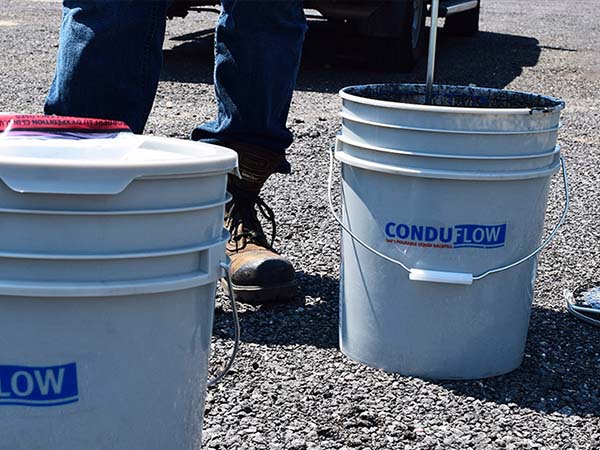

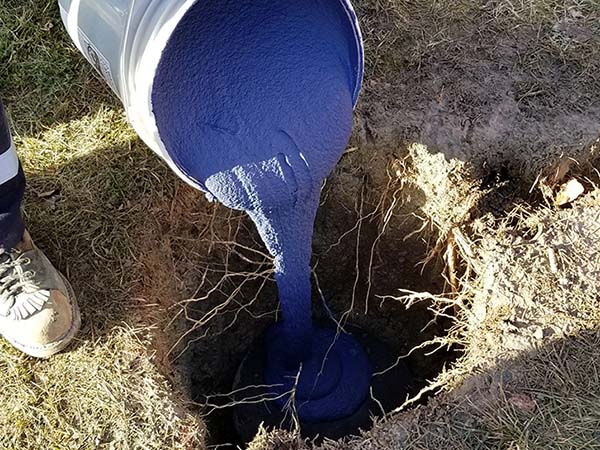

ConduFlow is the ideal long-term solution for utility pole, pad mount transformer and tower grounding applications where traditional dusty backfills are not acceptable. ConduFlow will protect the grounding conductor from theft and corrosion, while providing an in-service time that is up to 20x the industry standard. You can save both money and materials by choosing ConduFlow for your next application.

ConduFlow  |  The STRONG Solution

By using the ConduFlow grounding system compared to the non-conductive backfill system in traditional use today, you will benefit from:

  • Increased safety with lightning and fault current surge protection to help prevent outages
  • Better asset performance through reduced ground resistance
  • Save money by extending the life of the grounding system by up to 20x that of a traditional system
  • Lowest lifecycle cost due to lower labor costs with reduced installation time and no maintenance cost for the lifetime of the application

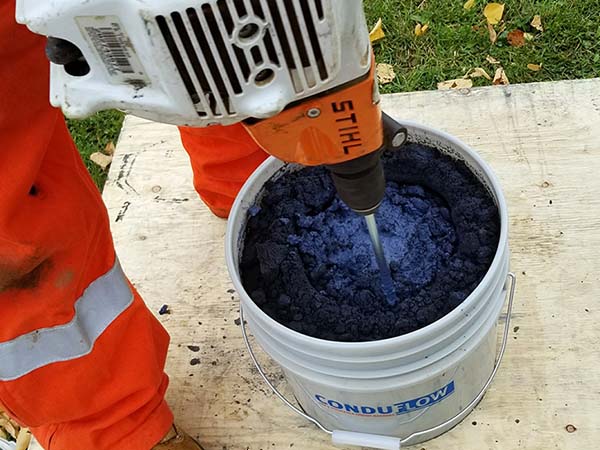

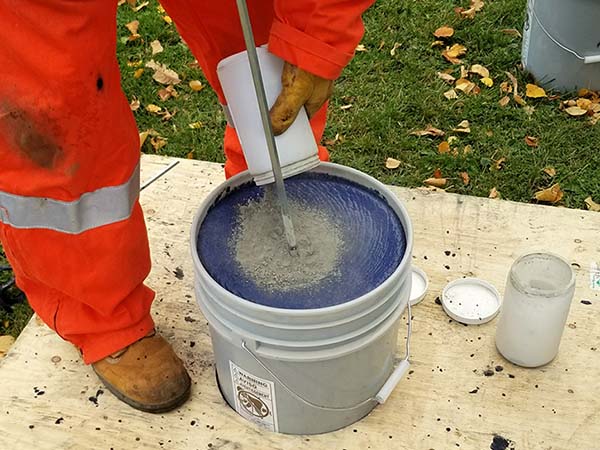

ConduFlow, a pourable conductive carbonaceous polymer backfill, that solidifies to provide corrosion resistance and strength for an enhanced grounding system.

Formable Conductive Backfill for Challenging Bedrock and Shallow Applications

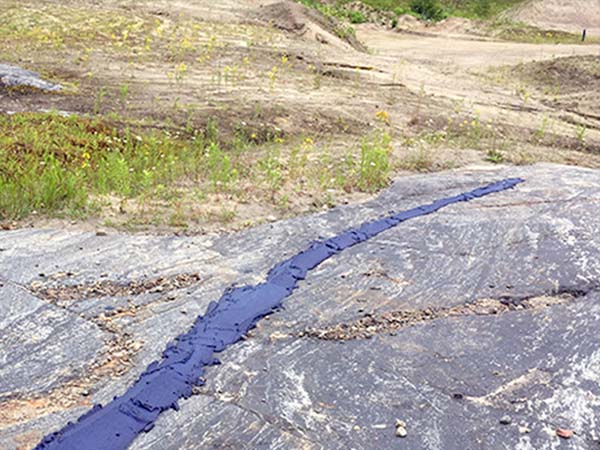

ConduForm is a dust free, conductive carbonaceous backfill material that is installed as a liquid and cures as a solid. Designed for applications where overburden is shallow or non-existent, ConduForm provides superior corrosion and theft protection to all surfaces. It can be poured on exposed rock surfaces to protect conductors and improve grounding where trenching is not possible. With an expected in-service lifetime that is up to 20x the industry standard, electrode corrosion is virtually eliminated.

ConduForm  |  The ROCK SOLID Solution

By using the ConduForm grounding system compared to the non-conductive backfill system in traditional use today, you will benefit from:

  • Increased safety with lightning and fault current surge protection to help prevent outages
  • Better asset performance through reduced ground resistance
  • Save money by extending the life of the grounding system by up to 20x that of a traditional system
  • Lowest lifecycle cost due to lower labor costs with reduced installation time and no maintenance cost for the lifetime of the application

ConduForm, a formable conductive carbonaceous polymer backfill, that solidifies to provide corrosion resistance and strength for an enhanced grounding system.

An Enhanced and Revolutionized Submersible Grounding Electrode

Request a Quote

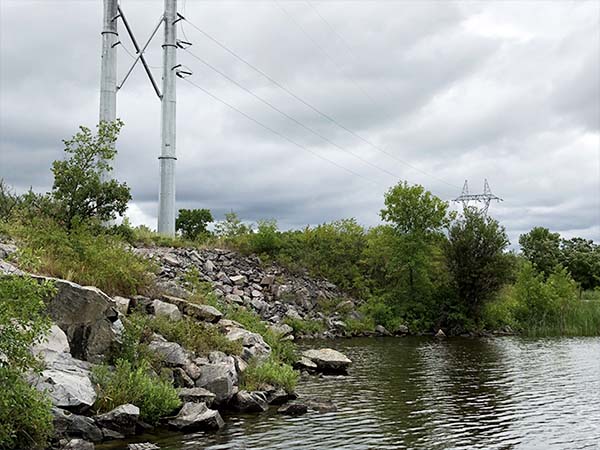

ConduMarine is a conductively molded, grounding electrode specifically designed for applications where water bodies near the utility structure provide the only viable grounding option.

ConduMarine  |  The UNDERWATER Solution

By using the corrosion resistant ConduMarine grounding system compared to the system in traditional use today, you will benefit from:

  • Better asset protection and reliability by ensuring protection devices function as designed even in challenging locations
  • Lowest lifecycle cost due to use of long lasting ConduCrete and high silicon cast iron rods
  • Improved safety due to effective and consistent grounding
  • Improved asset performance with high surge tolerance and low impedance

ConduMarine is a 4′ long, 5″x5″ ground electrode that consists of a high silicon cast iron rod factory molded inside ConduCrete Pro. It is ideally suited for use in situations where all grounding must take place in the water. The density of the material allows the ConduMarine to sink when placed into the water.
